Pushbutton

ATPS19SL1306M0SA04G
Atps190 Series
Anti-Vandal Short Body Sealed Pushbutton Switch

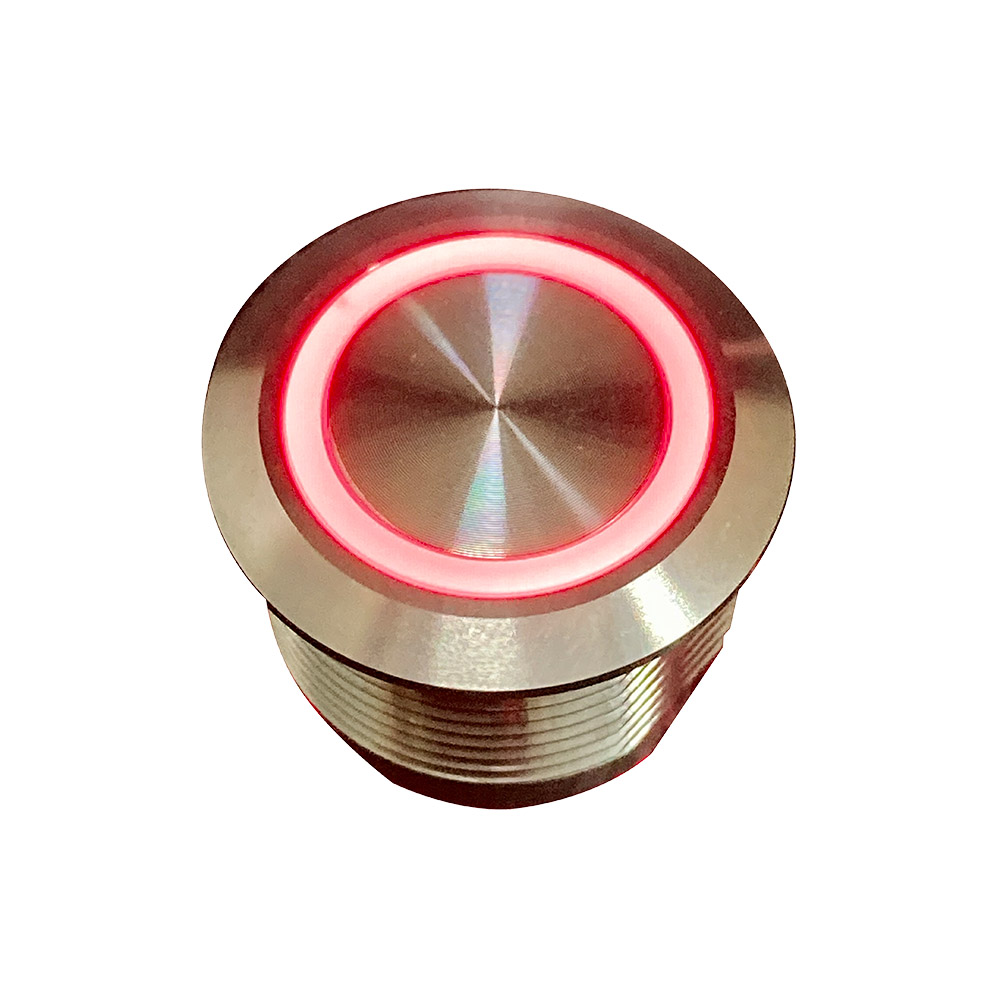

Pushbutton ATPS19 product image

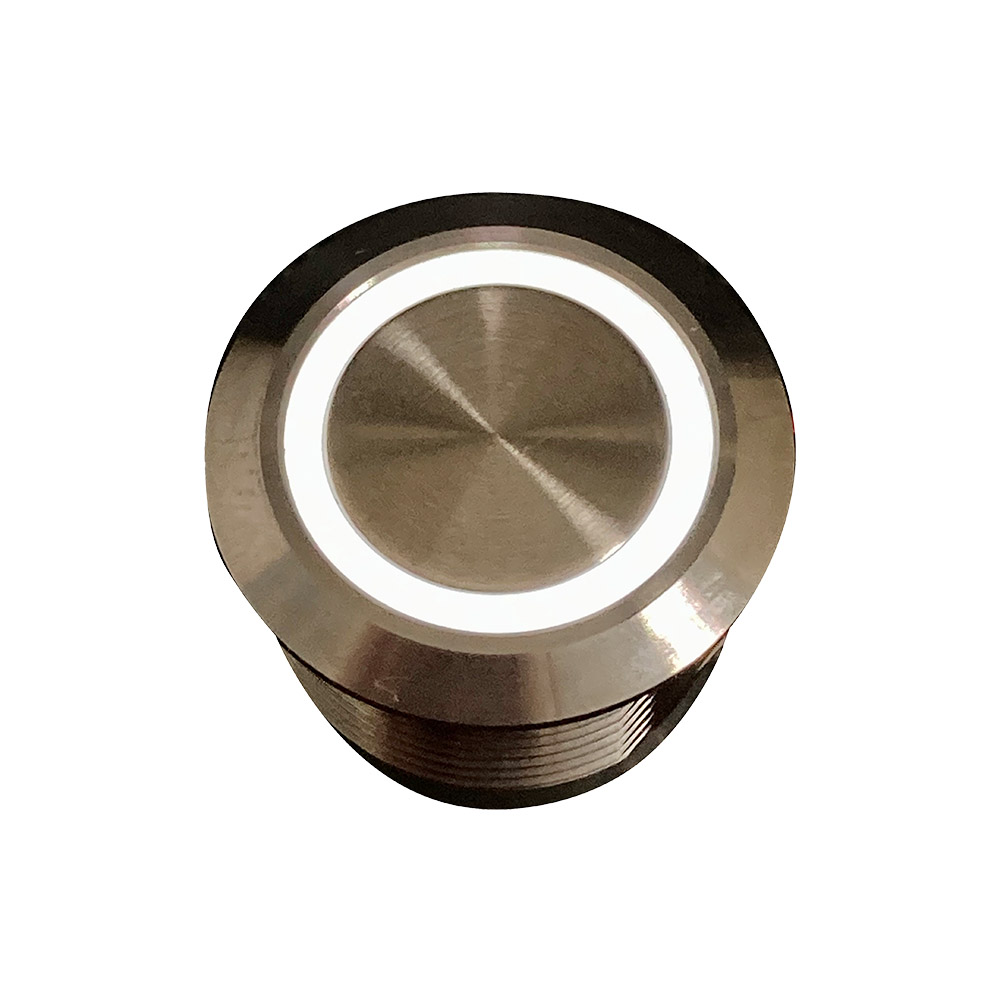

Pushbutton ATPS19 product image

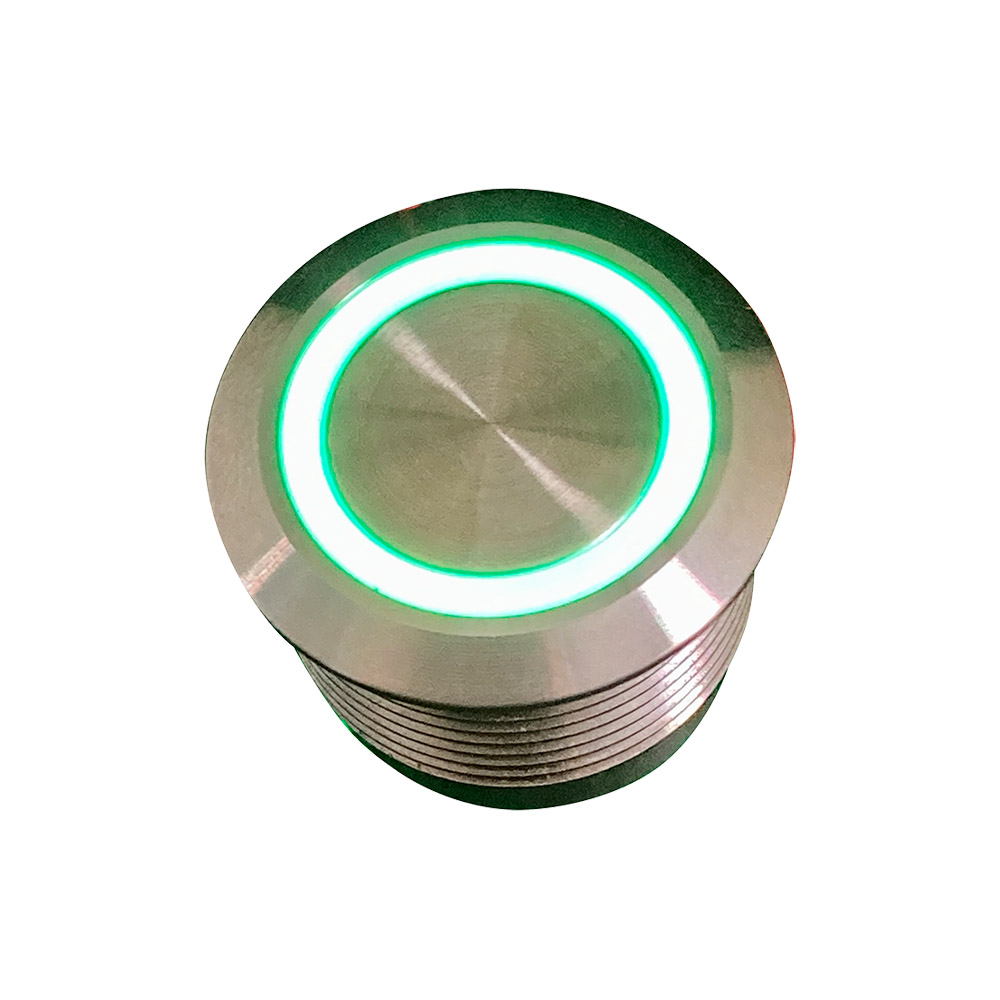

Pushbutton ATPS19 product image

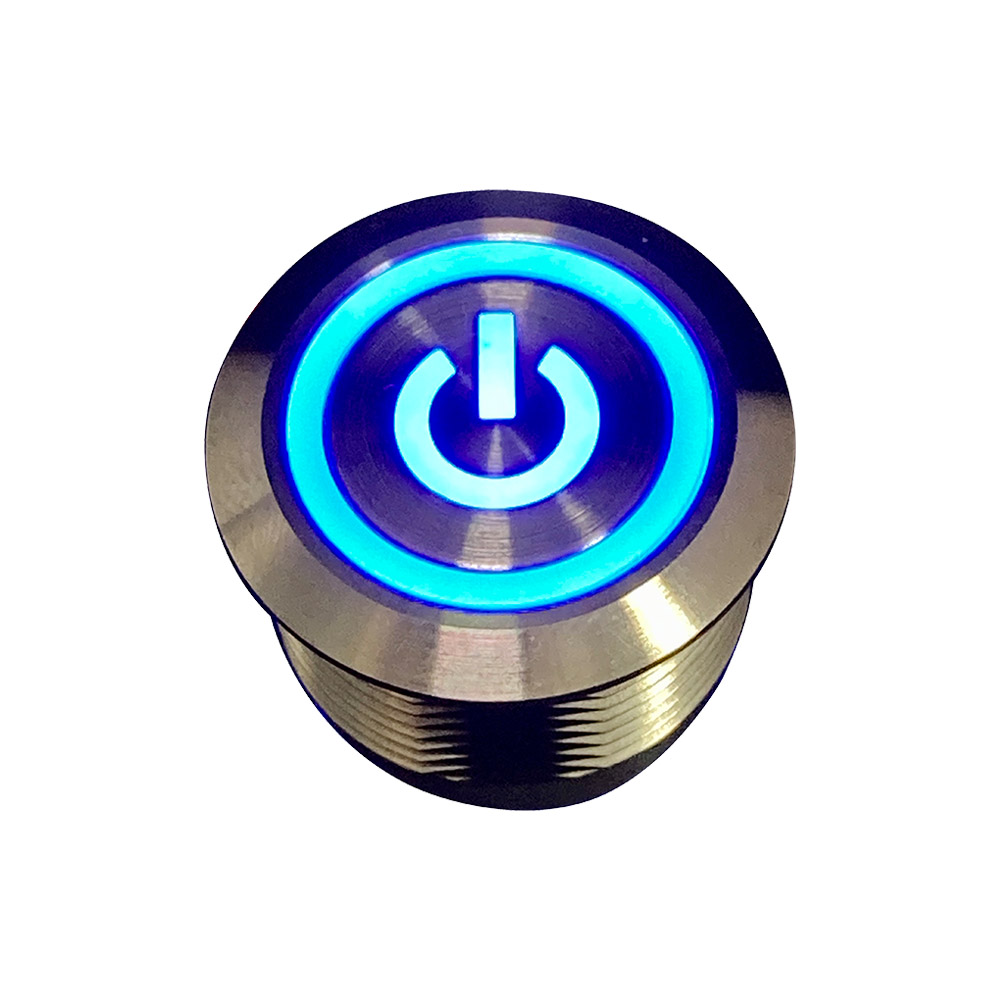

Pushbutton ATPS19 product image
Pushbutton ATPS19 product image

Image shown represents the product series and may not indicate the actual part number

The ATPS19 series is designed to withstand deliberate damage and vandalism, which in turn can reduce the need for costly in-field repairs and product recalls. Besides being vandal proof, the new switches share many characteristics of other ATP switches in the range, including being lightweight, IP67-rated and corrosion resistant. As the devices integrating this switch are often outdoors, the switch has been designed to withstand extreme environmental conditions and water exposure.

Features and Benefits

  • IP67 sealed to endure harsh environments
  • Light weight & high strength
  • Snap-action provide positive feedback
  • 1,000,000 life cycle
  • IK10 rated impact protection

Typical Applications

  • Alarm, safety & security systems
  • Access control, door intercoms
  • Service station equipment
  • Elevator/ Escalator
  • Transportation controls

Specifications

  • Operating Life:

    200, 000 cycles

  • Contact Rating:

    Silver Alloy plated

  • Insulation Resistance:

    1 gigohms @ 500 VDC

  • Dielectric Strength:

    2000V RMS@sea level

  • Operating Temperature:

    -20°C to +70°C

  • Contact Resistance:

    50 milliohms max @ 1A 12VDC initial

ATPS19SL1306M0SA04G

  • Most Common:

    No

  • Current Rating:

    2A

  • Circuit:

    SPST

  • Mounting Type:

    Panel Mount, Front, Threaded

  • Sealing:

    Sealed - IP67

  • Illumination:

    Yes

  • Switch Function:

    Momentary

  • Electrical Life Cycles:

  • Voltage Rating - AC:

  • Voltage Rating - DC:

    36V

  • Actuator Type:

    Standard

  • Color - Actuator/Cap:

    Translucent

  • Illumination Type, Color:

    Red

  • Illumination Voltage (Nominal):

    6

  • Termination Style:

    Solder lug

  • Additional Features:

    Wire lead termination-500mm

  • Panel Cutout Dimensions:

    Circular - 16mm Dia

  • Packaging:

    Tray
